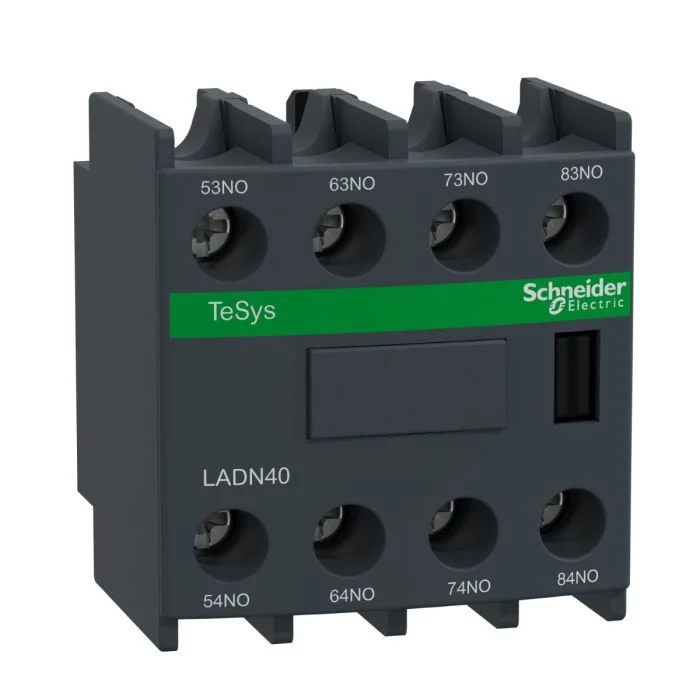

BR Tech Intdustrie - LADN40 Auxiliary contact block, TeSys D, 4NO, front mounting, screw clamp terminals

Activity

PPCTR

Part Number

LADN40

[Ith] conventional free air thermal current

10 A (at 60 °C)

[Ui] rated insulation voltage

690 V conforming to IEC 60947-5-1, 600 V conforming to UL, 600 V conforming to CSA

ambient air temperature for storage

-60-80 °C

colour

dark grey

connections - terminals

screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end, screw clamp terminals 1 cable(s) 1-4 mm²flexible without cable end, screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end, screw clamp terminals 2 cable(s) 1-4 mm²flexible without cable end, screw clamp terminals 1 cable(s) 1-4 mm²rigid without cable end, screw clamp terminals 2 cable(s) 1-4 mm²rigid without cable end

depth

42 mm

device short name

LADN

height

48 mm

IP degree of protection

IP2X conforming to IEC 60529

Irms rated making capacity

140 A AC conforming to IEC 60947-5-1, 250 A DC conforming to IEC 60947-5-1

mechanical durability

30 Mcycles

minimum switching current

5 mA

minimum switching voltage

17 V

net weight

Specifications	Descriptions
